LCD construction

In this post I will explain how the LCD are made. Click in the following button to see the post about the working of LCD.

LCD LCDClick here

Materials

Here are the materials that compose the LCD.

The liquid crystal stays between two polymer layers, the LCD’s glass is coated with silicon dioxide to polarize the light and it is made of borosilicate to avoid the ions to modify the electrical field and consequently the crystal’s alignment, the silicate dioxide is to stop the passage of ions. Transparent electrodes are made with a layer of indium tin oxide and lithography (I will create a post about this process with more details).

Manufacturing mode

To make a LCD, first you have to wash, polishing and cut in the right size. The polishing is made with this process.

The glass must be cut with a diamond saw.

After that the glass is coated with silicon dioxide. The next step is to put the transparent electrodes in the glass substrate and for that you must coat it with indium tin oxide, put a photoresistive layer above and use a mask to apply the photolithography process, similar to the process of manufacture chips.

The next step is use a polymer film of polyamide to coat the substrate with electrode to align the liquid crystal with the substrate. Then the liquid crystal is finally injected between two substrates, the LCD cell should have between 5 to 25 micrometers. Finally build the electronic circuit to control the LCD.

Types of transformers

In the previous post about energy, I talked about how transformers work. In this post I will talk about many types of transformers. Click in the following button to know how the transformers work.

News: snake robot catch objects and climb walls

Was developed a snake robot which moves very similar to a real snake. This robot does not have rigid motors, has discs with 3 air bladders between a pair of discs.

Arduino tutorial (Part 1)

This post is part from a series of posts about how to use Arduino. It is a very easy microcontroller to learn and you can do many projects.

Vehicle trackers

Due to requests, I will explain how electronic trackers in a general work. The focus in this post will be tracking used in vehicles.

News: play music with thought

I know I said that the next post about electronics will be the construction of LCD displays, but I think this is a very interesting news and I could not let it pass.

Transformers

In this post, I will explain how transformers work. Thanks to transformers, it is possible to transmit electric energy in alternating current over long distances, receiving a voltage level and transmitting another level.

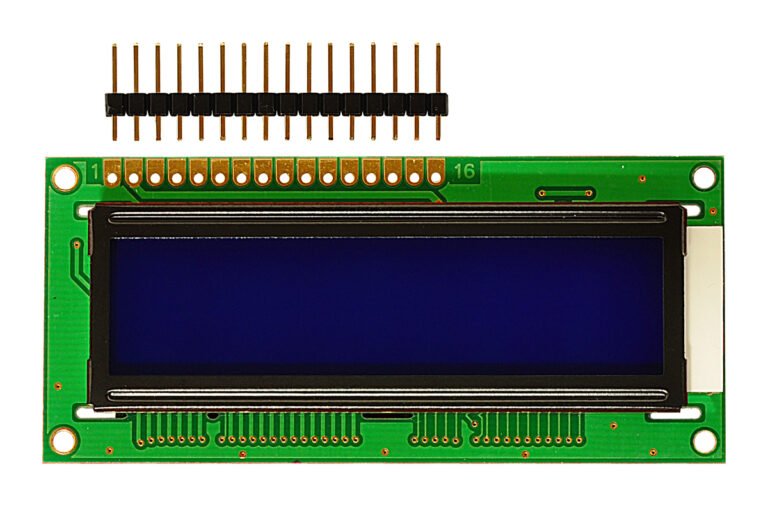

Liquid Crystal Display

I receive requests to explain how the liquid crystal display (LCD) works. Which is this post’s subject.

Resistance, Capacitance, Inductance, Impedance and Reactance

This is another post about basic concepts of electricity. This time I will talk about resistors, capacitors, inductors in CC and AC.

My master degree work

In this post I will give an explanation about my research project which became my master dissertation. It is a complicated subject which uses technical terms.

My dissertation’s title is “Optimized System Design of Radiofrequency Receivers Based on Consumption Power Models”, that is, a circuit design block method of a radiofrequency receiver to the receiver consume the minimum energy possible without harm the performance. For a long time the block design was based on the designer’s experience and this design not always is the most economical in power consumption. This work is about only the receiver’s analog part.

Receiver

First I have to choose a receiver architecture to define the circuit blocks to be designed, the chosen architecture is the Zero-IF, because it has the less number of blocks, therefore consume less power. Here is the RF transceiver in Zero-IF, the receiver above and the transmitter below.

Chosen the architecture, were selected the circuit blocks to be designed, the blocks are: RF filter, LNA (Low Noise Amplifier), Mixer, Base Band Filter, VGA (Voltage Gain Control) and ADC (Analog Digital Converter).

The adopted standard is the LTE, a forth generation standard, in the parameters distribution I had to respect the gain, noise figure and IIP3 limits.

Method

To prove the method effectiveness I choose two models very different for each other, I make arbitrary distributions to see the power consumption and later I applied the optimization. The optimization method is an algorithm whose fluxogram is below, it make random distributions of gain, signal-noise rate and signal-noise + distortion rate, calculate the power consumption and repeat the cycle a number of times. After apply the optimization, calculate the power consumption and repeat a number of times. To more information see in the document I put in the end of post to download.

Simulation

There is a table with the models, the distributions and how much the algorithm reduces the power consumption.

Model 1 Model 2
Uniform (Case 1) 15,37mW 447,6mW
1-x to SNR_{deg} and SNDR_{deg} (Case 2) 6,72mW 341,29mW
1-x to SNR_{deg} and x to SNDR_{deg} (Case 3) 11,64mW 325,86mW
Average 11,24mW 371,58mW
With optimization 1,90mW 190,35mW
Reduction comparing to average 83% 48,8%

The power consumption graphics of each circuit block to comparison, the model 1 is (a) and the model 2 is (b).

To know more with more details about my thesis, here is the complete thesis in pdf, only available in Portuguese.

Dissertação_Pedro_Ney_Definitiva
